Lian Li DAN Cases A3-mATX - black + 3x UNI FAN SL-INF 120 ARGB reverse blade fans + 1x standard PWM fan - 120mm
This bundle combines the Lian Li DAN Cases A3-mATX with powerful UNI FAN SL-INF 120 fans including the UNI HUB SL-INF Controller. The compact Micro-ATX case offers you maximum flexibility for high-performance builds – featuring an impressive ARGB presentation with infinity mirror effect.
- DAN Cases A3-mATX – compact 26-litre Micro-ATX case
- 3x UNI FAN SL-INF 120 Reverse Blade for uniform infinity look
- 1x UNI FAN SL-INF 120 for additional airflow
- UNI HUB SL-INF Controller for up to 16 fans
- Supports up to 10 fans & 360mm radiators
- Daisy-chain system for clean cable management
Compact format, great hardware compatibility
With approximately 26 litres volume, the A3-mATX is particularly space-saving yet ready for powerful gaming hardware. It supports Micro-ATX and Mini-ITX motherboards as well as graphics cards up to 415 mm length and 4-slot height.
Depending on the configuration, you can install ATX, SFX-L, or SFX power supplies. Thanks to flexible mounting options, there is plenty of room for radiators or especially long GPUs.
Strong cooling performance in a small space
The case offers space for up to 10x 120mm fans. Radiators up to 360 mm are possible at the top or side, and a 240mm radiator can also be installed at the bottom. CPU air coolers can be up to 165 mm tall.

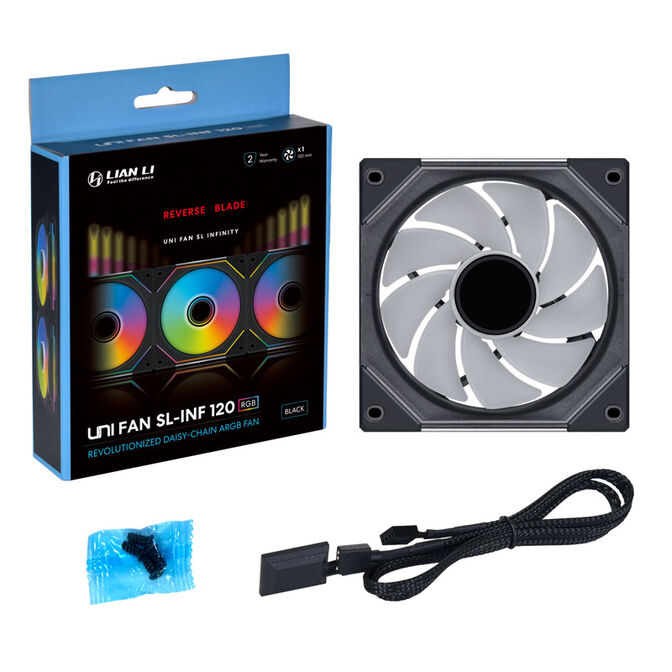

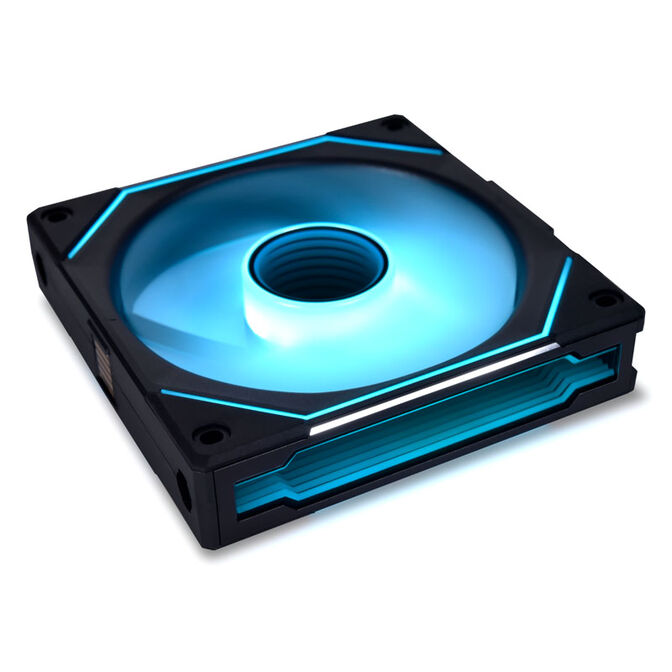

UNI FAN SL-INF 120 Reverse Blade – Performance meets aesthetics
The Reverse Blade variant creates a reversed airflow without sacrificing the visible infinity mirror front. With up to 2,100 RPM, 108.05 m³/h airflow volume and 2.02 mmH2O static pressure, these fans are ideal for radiators and airflow optimisation.
The additional UNI FAN SL-INF 120 operates especially efficiently with 104.14 m³/h and 2.66 mmH2O static pressure at a maximum of 29 dB(A).
40 ARGB LEDs & clever cabling
Each fan features 40 digitally addressable RGB LEDs, which combined with the infinity mirrors create spectacular lighting effects. The modular daisy-chain connector system links multiple fans directly together – power, PWM and ARGB signals are internally relayed.
UNI HUB SL-INF – Central control for your setup
With the UNI HUB SL-INF Controller, up to 16 UNI FAN SL-INF fans can be controlled in four clusters. Via the L-Connect 3 software, you can configure speed and lighting profiles individually or use predefined modes. Alternatively, direct connection to the motherboard is possible.
|
Lian Li DAN Cases A3-mATX Micro-ATX Case - Black
|
|
|
Colour
|
|
|
Primary Colour
|
Black
|
|
Colour Finish
|
Matt
|
|
Dimensions
|
|
|
Length / Depth
|
443 mm
|
|
Width
|
194 mm
|
|
Height
|
321.5 mm
|
|
Weight
|
5 kg
|
|
Case
|
|
|
Case Type
|
Mini Case
|
|
Motherboard Support
|
|
|
Compatible Motherboard Formats
|
Micro-ATX, Mini-ITX
|
|
Max. Motherboard Format
|
Micro-ATX
|
|
Internal Dimensions
|
|
|
Max. CPU Cooler Height
|
165 mm
|
|
Max. GPU Length
|
415 mm
|
|
Max. PSU Length / Depth
|
220 mm
|
|
Inner Volume
|
26.3 l
|
|
Display
|
|
|
Display Included
|
No
|
|
Power Supply
|
|
|
PSU included
|
No
|
|
PSU Format
|
ATX, SFX, SFX-L
|
|
Power Supply Position
|
Internal
|
|
Cable Specifications
|
|
|
Riser Cable Included
|
No
|
|
Fan Support
|
|
|
Case Fan Support (Bottom)
|
120mm Fan (3x)
|
|
Case Fan Support (Rear)
|
120mm Fan (1x)
|
|
Case Fan Support (Side)
|
120mm Fan (3x), 140mm Fan (2x)
|
|
Case Fan Support (Top)
|
120mm Fan (3x)
|
|
Max. Number of Fans
|
10
|
|
120 mm fans
|
10
|
|
140 mm fans
|
2
|
|
Radiator Support
|
|
|
Max. Radiator Compatibility
|
2x Triple (360 mm)
|
|
Radiator/AIO Support (Bottom)
|
240mm Radiator, 360mm Radiator
|
|
Radiator/AIO Support (Side)
|
240mm Radiator, 280mm Radiator, 360mm Radiator
|
|
Radiator/AIO Support (Top)
|
240mm Radiator, 360mm Radiator
|
|
Drive Bays
|
|
|
Max. 2.5 Inch Drives
|
3
|
|
Max. 3.5 Inch Drives
|
1
|
|
Max. 5.25 Inch Drives
|
0
|
|
2.5 inch internal drive bay
|
2
|
|
1x 3.5 / 1x 2.5 Inch Internal Drive Bays (combined)
|
1
|
|
Hot swap drive bays
|
No
|
|
External Ports
|
|
|
Front I/O – USB Type C Ports Total
|
1
|
|
Front I/O – USB Type A Ports Total
|
2
|
|
USB 3.1 (external) Type C
|
1
|
|
USB 3.0 (external) Type A
|
2
|
|
Audio outputs & inputs
|
1x output + 1x input (3.5 mm jack, 3-pin, TRS)
|
|
Case Features
|
|
|
I/O position
|
Front
|
|
Side panel
|
with mesh
|
|
Vertical GPU Mount
|
No
|
|
Adjustable Vertical GPU Bracket
|
No
|
|
Front door
|
No
|
|
Cable Management
|
Yes
|
|
Filters Included
|
Yes
|
|
Filter Position
|
Bottom
|
|
Noise dampening
|
No
|
|
Mainboard slide / tray
|
No
|
|
Remote included
|
No
|
|
Transport System
|
No
|
|
Back Connect
|
|
|
Back Connect
|
No
|
|
Expansion Slots
|
|
|
Expansion slots / PCI slots
|
4
|
|
Features
|
|
|
Housing Feedthrough
|
No
|
|
Connectivity
|
|
|
Card reader
|
No
|
|
Fan Header
|
|
|
Fan Controller / Fan Hub
|
No
|
|
Mounting
|
|
|
Case VESA Mountable
|
No
|
|
Internal Monitor Mount
|
No
|
|
Materials
|
|
|
Materials
|
Plastic, Steel
|
|
Lighting
|
|
|
Lighting / RGB
|
No
|
|
Additional Contents
|
|
|
Fans Included
|
No
|
|
Included fans
|
None
|
|
Lian Li UNI FAN SL-INF 120 ARGB Reverse Blade PWM Fan - 120mm, black
|
|
|
Colour
|
|
|
Primary Colour
|
Black
|
|
Secondary Colour
|
White
|
|
Fan Main Colour (Frame)
|
Black
|
|
Fan Main Colour (Rotor)
|
White
|
|
Dimensions
|
|
|
Length / Depth
|
122 mm
|
|
Width
|
120 mm
|
|
Fan height
|
25 mm
|
|
Fan Specifications
|
|
|
Fan Design
|
Individual Fan
|
|
Fan Size
|
120 mm
|
|
Fan mounting size
|
120 mm
|
|
Fan Blade Direction
|
Reverse
|
|
Fan Bearing
|
Fluid Dynamic Bearing
|
|
Min. Fan RPM
|
200 rpm
|
|
Max. Fan RPM
|
2100 rpm
|
|
Max. Single Fan Airflow
|
63.6 cfm
|
|
Max. Static Pressure
|
2.02 mmH2O
|
|
Power Specifications
|
|
|
Rated voltage
|
12 V
|
|
Starting voltage
|
6 V
|
|
Noise
|
|
|
Max. Single Fan Noise
|
32 dB(A)
|
|
Internal Ports
|
|
|
Fan connectors
|
4 Pin (PWM)
|
|
RGB / LED connectors
|
1x Digital RGB (3-Pin 5V/12VDG)
|
|
Materials
|
|
|
Materials
|
Aluminium, PBT, Polycarbonate
|
|
Lighting
|
|
|
Lighting / RGB
|
Yes
|
|
Lighting Colour
|
RGB
|
|
Product Series
|
|
|
Product Series/Family
|
UNI FAN SL INF
|
|
Set
|
|
|
Set
|
No
|
|
Lian Li UNI FAN SL-INF 120 ARGB PWM - 120mm, black
|
|
|
Colour
|
|
|
Primary Colour
|
Black
|
|
Secondary Colour
|
Grey
|
|
Fan Main Colour (Frame)
|
Black
|
|
Fan Main Colour (Rotor)
|
Grey
|
|
Dimensions
|
|
|
Length / Depth
|
122.1 mm
|
|
Width
|
120 mm
|
|
Fan height
|
25 mm
|
|
Fan Specifications
|
|
|
Fan Design
|
Individual Fan
|
|
Fan Size
|
120 mm
|
|
Fan mounting size
|
120 mm
|
|
Fan Blade Direction
|
Standard
|
|
Fan Bearing
|
Fluid Dynamic Bearing
|
|
Min. Fan RPM
|
200 rpm
|
|
Max. Fan RPM
|
2100 rpm
|
|
Max. Single Fan Airflow
|
61.3 cfm
|
|
Max. Static Pressure
|
2.66 mmH2O
|
|
Power Specifications
|
|
|
Rated voltage
|
12 V
|
|
Starting voltage
|
6 V
|
|
Noise
|
|
|
Max. Single Fan Noise
|
29 dB(A)
|
|
Internal Ports
|
|
|
Fan connectors
|
4 Pin (PWM)
|
|
RGB / LED connectors
|
1x Digital RGB (3-Pin 5V/12VDG)
|
|
Materials
|
|
|
Materials
|
Aluminium, PBT, Polycarbonate
|
|
Lighting
|
|
|
Lighting / RGB
|
Yes
|
|
Lighting Colour
|
RGB
|
|
Product Series
|
|
|
Product Series/Family
|
UNI FAN SL INF
|
|
Set
|
|
|
Set
|
No
|
|
Lian Li UNI HUB SL-INF Controller, L-Connect 3 - black
|
|
|
Colour
|
|
|
Primary Colour
|
Black
|
|
Materials
|
|
|
Materials
|
Plastic
|
|
Lighting
|
|
|
Lighting / RGB
|
Yes
|
|
Set
|
|
|
Set
|
No
|
