Lian Li O11 Vision Compact + TRYX PANORAMA ARGB Complete Water Cooling - white, 360mm
- Panoramic case with Tempered Glass on three sides
- Mesh or glass cover: Two options for airflow or showcase effect
- Space for E-ATX, ATX, Micro-ATX, or Mini-ITX motherboards
- GPU up to 408 mm in length, power supply up to 220 mm
- Up to eleven fans or three 360 mm radiators can be installed
- Clever two-chamber layout for better air circulation
- Compatible with ASUS BTF and MSI Project Zero (Back-Connect)
- 2x 2.5-inch SSDs + 2x 3.5/2.5-inch HDDs can be installed
- Front panel with USB-C and two USB-A ports
Showcase meets efficiency – the Lian Li O11 Vision Compact
The Lian Li O11 Vision Compact combines maximum visibility with thoughtful functionality. Three sides of Tempered Glass provide an unobstructed view of your hardware, while still accommodating powerful components and radiators. Ideal if you like to showcase your system on your desk – stylish, compact, and extremely flexible.
Vision Mode or Mesh Mode? You decide!
With two included covers, the case adapts to your style and cooling needs. In Vision Mode, glass surfaces dominate – perfect for tidy builds and showcases. The Mesh Mode offers additional cooling options and expands radiator capacity to three 360 mm radiators and up to eleven fans.
Optimised for modern high-end gaming
The case accommodates GPUs up to 408 mm in length and power supplies up to 220 mm – ideal for current high-end builds. Thanks to Back-Connect support (ASUS BTF, MSI Project Zero), cable management remains tidy and airflow is optimal. The dust filter at the bottom keeps the interior clean.
Well-structured interior
The two-chamber layout separates the power supply and storage from the visible main area. This keeps everything tidy – and your RGB hardware takes centre stage. Two SSDs and two additional HDDs or SSDs fit in the second chamber. Installation is quick, and the result is clean.
Thoughtfully designed down to the detail
With the compact O11 Vision Compact, you get a flexible showcase case for modern hardware. Ideal if you value design, cooling, and a minimalist setup – whether with airflow focus or full glass aesthetics.
|

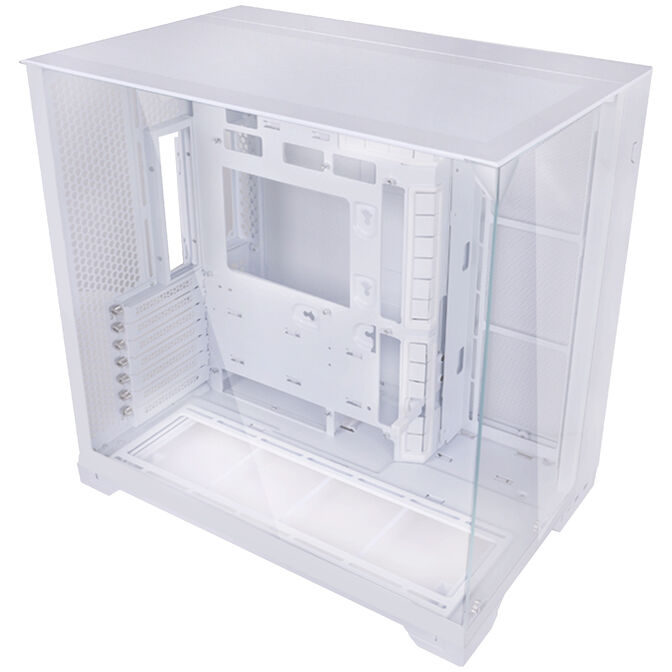

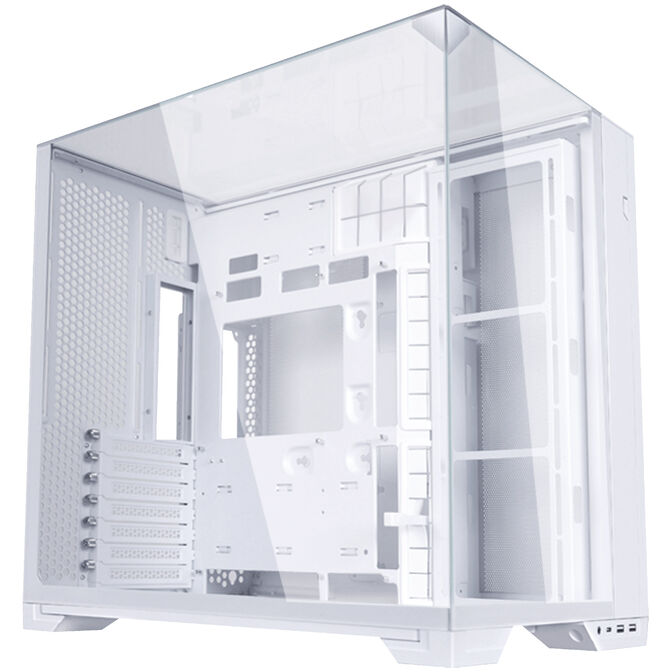

Lian Li O11 Vision Compact PC Case, Mid Tower, E-ATX, Tempered Glass - White
|
|
|
Colour
|
|
|
Primary Colour
|
White
|
|
Dimensions
|
|
|
Length / Depth
|
447.5 mm
|
|
Width
|
287.5 mm
|
|
Height
|
446.4 mm
|
|
Weight
|
11.35 kg
|
|
Case
|
|
|
Case Type
|
Mid Tower
|
|
Motherboard Support
|
|
|
Compatible Motherboard Formats
|
ATX, E-ATX, Micro-ATX, Mini-ITX
|
|
Max. Motherboard Format
|
E-ATX
|
|
Internal Dimensions
|
|
|
Max. CPU Cooler Height
|
167 mm
|
|
Max. GPU Length
|
408 mm
|
|
Max. PSU Length / Depth
|
220 mm
|
|
Display
|
|
|
Display Included
|
No
|
|
Power Supply
|
|
|
PSU included
|
No
|
|
PSU Format
|
ATX
|
|
Power Supply Position
|
rear side / top
|
|
Cable Specifications
|
|
|
Riser Cable Included
|
No
|
|
Fan Support
|
|
|
Case Fan Support (Bottom)
|
120mm Fan (3x)
|
|
Case Fan Support (Rear)
|
120mm Fan (2x)
|
|
Case Fan Support (Side)
|
120mm Fan (3x)
|
|
Case Fan Support (Top)
|
120mm Fan (3x), 140mm Fan (2x)
|
|
Max. Number of Fans
|
11
|
|
120 mm fans
|
11
|
|
140 mm fans
|
2
|
|
Radiator Support
|
|
|
Max. Radiator Compatibility
|
3x Triple (360 mm)
|
|
Radiator/AIO Support (Bottom)
|
240mm Radiator, 360mm Radiator
|
|
Radiator/AIO Support (Side)
|
240mm Radiator, 360mm Radiator
|
|
Radiator/AIO Support (Top)
|
240mm Radiator, 280mm Radiator, 360mm Radiator
|
|
Drive Bays
|
|
|
Max. 2.5 Inch Drives
|
4
|
|
Max. 3.5 Inch Drives
|
2
|
|
Max. 5.25 Inch Drives
|
0
|
|
2.5 inch internal drive bay
|
2
|
|
1x 3.5 / 1x 2.5 Inch Internal Drive Bays (combined)
|
2
|
|
Hot swap drive bays
|
No
|
|
External Ports
|
|
|
Front I/O – USB Type C Ports Total
|
1
|
|
Front I/O – USB Type A Ports Total
|
2
|
|
USB 3.1 (external) Type C
|
1
|
|
USB 3.0 (external) Type A
|
2
|
|
Audio outputs & inputs
|
1x output / input comb. (3.5 mm jack, 4-pin, TRRS)
|
|
Case Features
|
|
|
I/O position
|
Front
|
|
Side panel
|
with window
|
|
Vertical GPU Mount
|
No
|
|
Adjustable Vertical GPU Bracket
|
No
|
|
Front door
|
No
|
|
Cable Management
|
Yes
|
|
Filters Included
|
Yes
|
|
Filter Position
|
Bottom
|
|
Noise dampening
|
No
|
|
Mainboard slide / tray
|
No
|
|
Remote included
|
No
|
|
Transport System
|
No
|
|
Back Connect
|
|
|
Back Connect
|
Yes
|
|
Back-Connect Compatibility
|
ASUS BTF, MSI Project Zero
|
|
Expansion Slots
|
|
|
Expansion slots / PCI slots
|
7
|
|
Features
|
|
|
Housing Feedthrough
|
No
|
|
Connectivity
|
|
|
Card reader
|
No
|
|
Fan Header
|
|
|
Fan Controller / Fan Hub
|
No
|
|
Mounting
|
|
|
Case VESA Mountable
|
No
|
|
Internal Monitor Mount
|
No
|
|
Materials
|
|
|
Materials
|
Aluminium, SPCC (steel), Tempered Glass
|
|
Lighting
|
|
|
Lighting / RGB
|
No
|
|
Additional Contents
|
|
|
Fans Included
|
No
|
|
Included fans
|
None
|
|

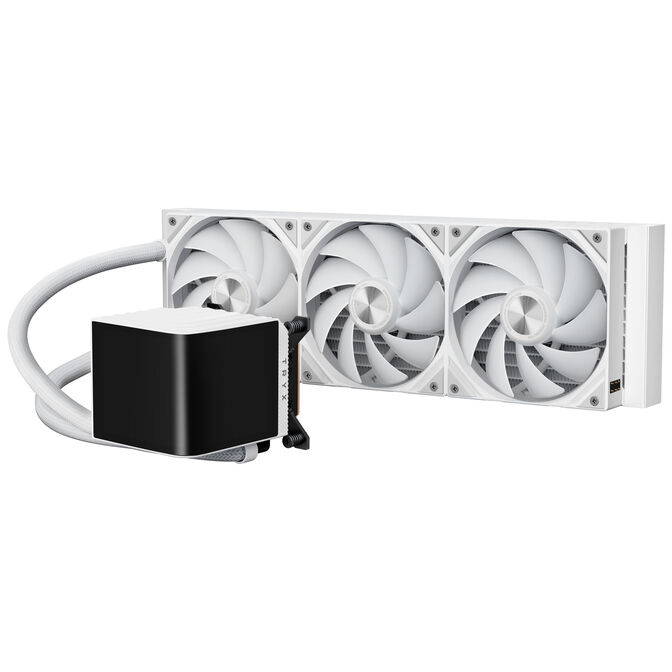

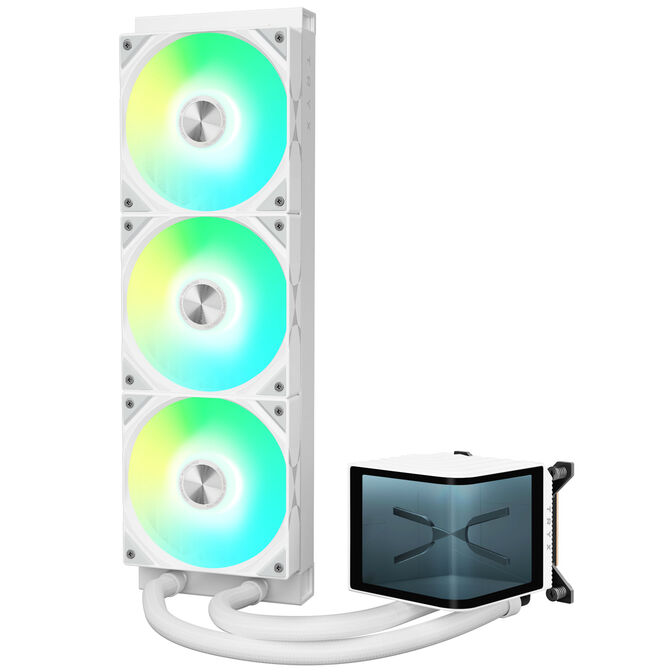

TRYX PANORAMA 360 AiO Water Cooling, 3D-AMOLED Display - 360mm, white
|
|
|
Colour
|
|
|
Primary Colour
|
White
|
|
Fan Main Colour (Frame)
|
White
|
|
Fan Main Colour (Rotor)
|
White
|
|
Main radiator colour (cage)
|
White
|
|
Main radiator colour (fins)
|
White
|
|
Dimensions
|
|
|
Length / Depth
|
120 mm
|
|
Width
|
399.5 mm
|
|
Height
|
30 mm
|
|
Fan height
|
25 mm
|
|
Radiator Size
|
360 mm
|
|
Radiator Height With Fan
|
30 mm
|
|
Tube length
|
40 cm
|
|
Type
|
|
|
CPU Cooler Type
|
AiO Liquid Cooler
|
|
CPU
|
|
|
CPU Socket
|
115X, 1200, 1700, 1851, AM4, AM5
|
|
Display
|
|
|
Display Included
|
Yes
|
|
Fan Specifications
|
|
|
Fan Size
|
120 mm
|
|
Fan Support
|
|
|
Included fans
|
3
|
|
Noise
|
|
|
Max. Pump Noise dB(A)
|
25.3 dB(A)
|
|
Max. Single Fan Noise
|
28.87 dB(A)
|
|
Internal Ports
|
|
|
Fan connectors
|
4 Pin (PWM)
|
|
Pump connectors
|
4 Pin (PWM control)
|
|
RGB / LED connectors
|
1x Digital RGB (3-Pin 5VDG)
|
|
Materials
|
|
|
Materials
|
Aluminium, Copper, Plastic
|
|
Lighting
|
|
|
Lighting / RGB
|
Yes
|
|
Lighting Colour
|
RGB
|
