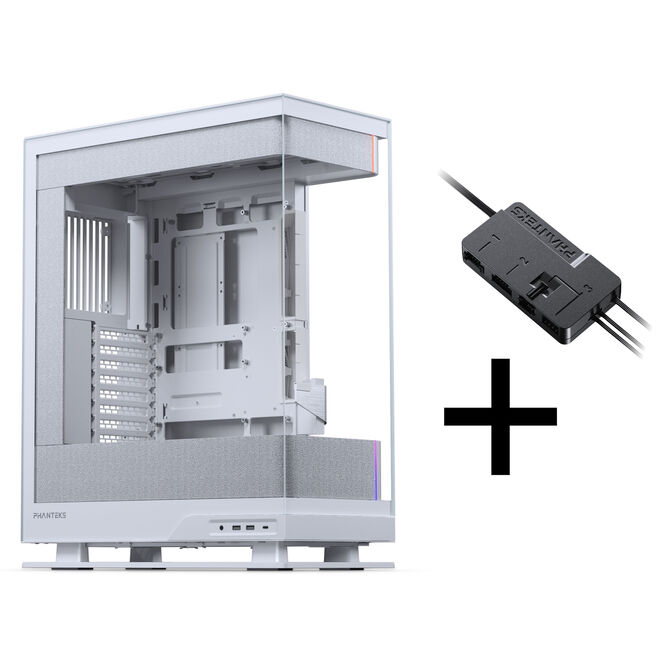

Phanteks Evolv X2 Matrix Case Bundle, Mid-Tower, E-ATX, Tempered Glass + Nxlinq V2 HUB - white
This bundle combines the Phanteks Evolv X2 Matrix with the Nexlinq Hub V2, providing you with the perfect foundation for a tidy high-end showcase system. Spacious interior, vertical airflow, and an impressive 900-LED matrix make your setup a real eye-catcher – centrally controlled via the Nexlinq ecosystem.
- Showcase design – Three large glass panels display your hardware almost floating
- 900-LED matrix – Fully customisable displays for temperatures, time, text, or animations
- Back-connect ready – Supports ASUS BTF, MSI Project Zero & GIGABYTE Project STEALTH
- Powerful vertical airflow – Up to seven 120 mm fans and 360 mm radiator support
- Central control – Nexlinq Hub V2 consolidates fan and RGB control via software

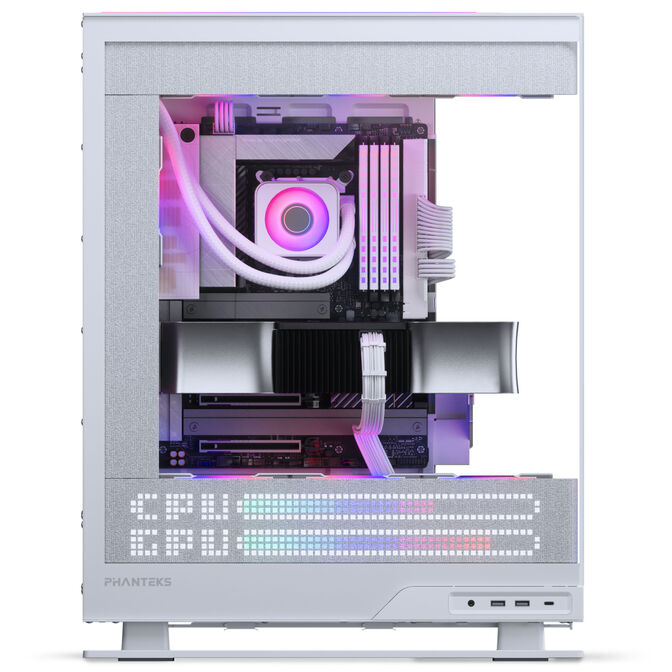

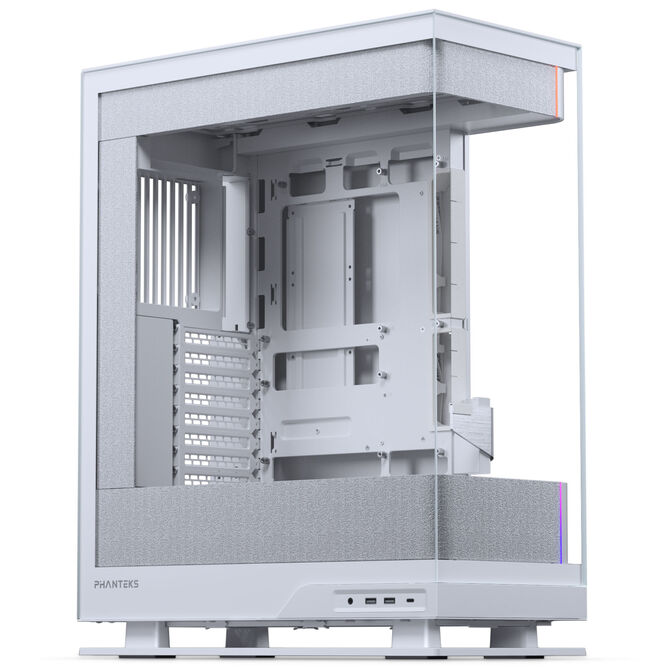

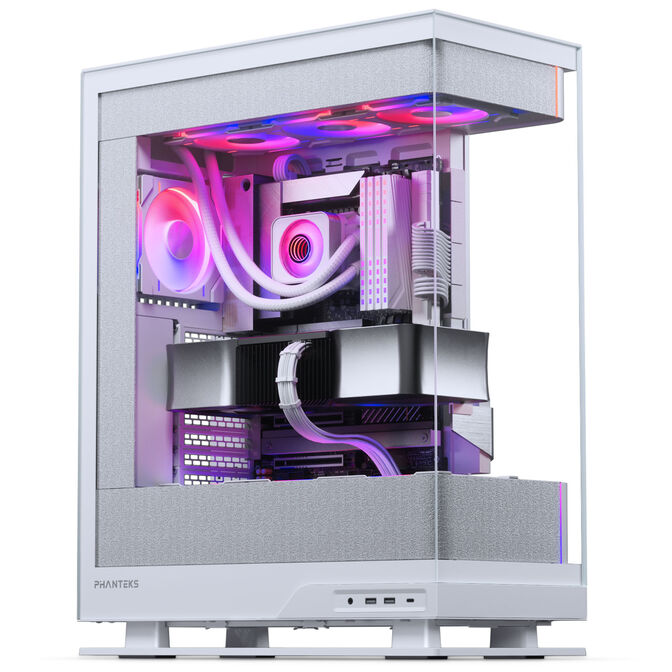

Evolv X2 Matrix: A stage for your high-end system

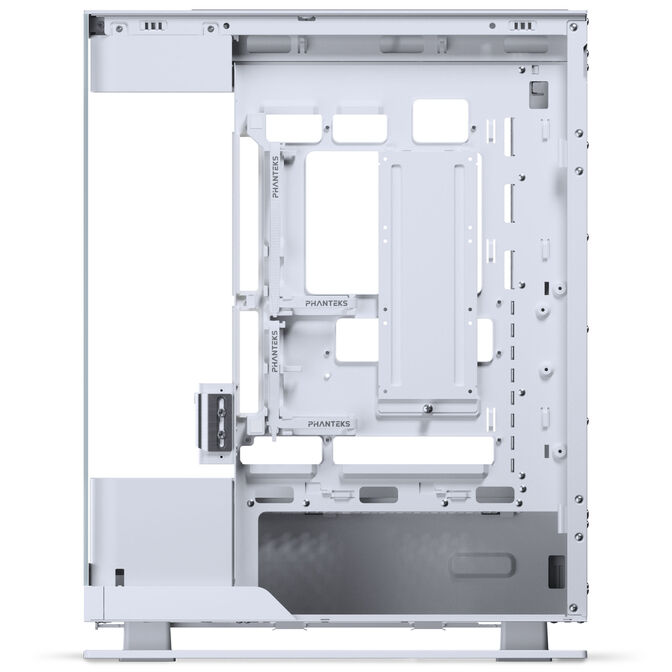

The generous interior supports motherboards from Mini-ITX to E-ATX as well as graphics cards up to 380 mm in length. Eight PCIe slots allow for flexible configurations. Thanks to back-connect compatibility, the interior remains especially tidy as cables disappear at the back. Three large tempered glass panels provide maximum visibility of your system.
Vertical cooling design for optimal performance
The Evolv X2 Matrix relies on a vertical airflow concept: fresh air flows in from below and warm air escapes upwards. Up to three 120 mm fans at the base, three at the top (or a 360 mm radiator), as well as one 120 mm fan at the rear ensure efficient cooling. With up to 170 mm CPU cooler height, the case is also suitable for powerful tower coolers.

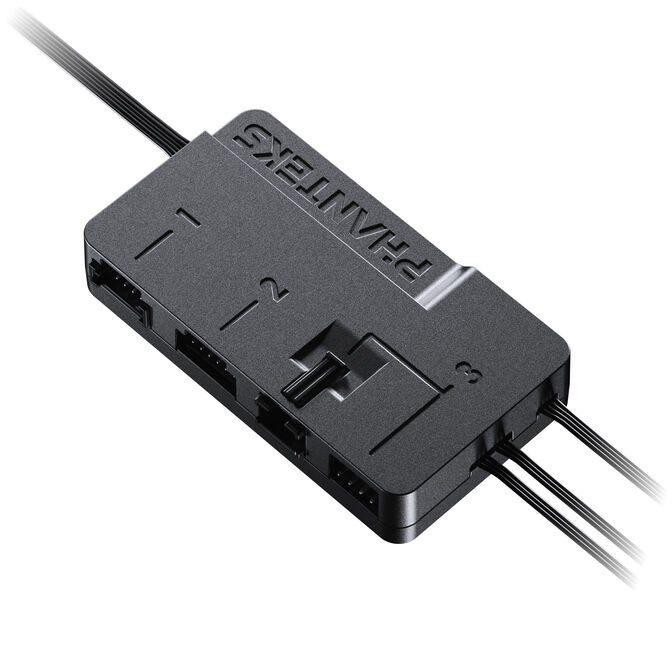

Nexlinq Hub V2: Full control over your system
The Nexlinq Hub V2 centrally connects fans and lighting. With two Linq6 ports, one 4-pin PWM header, and one 3-pin JST connector, it is flexibly usable. Mounting is comfortably done via magnet or Velcro strip. Power supply runs via two SATA connectors, while connection to the motherboard is established via USB or Linq6. Through Windows Dynamic Lighting or the Phanteks Nexlinq App, you can individually control fan curves and RGB effects.
|

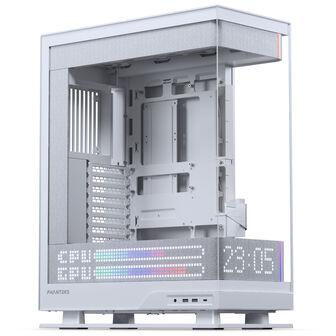

Phanteks Evolv X2 Matrix PC Case, Mid-Tower, E-ATX, Tempered Glass, Matrix LED - White
|
|
|
Colour
|
|
|
Primary Colour
|
White
|
|
Dimensions
|
|
|
Length / Depth
|
454 mm
|
|
Width
|
228 mm
|
|
Height
|
588 mm
|
|
Weight
|
14.6 kg
|
|
Case
|
|
|
Case Type
|
Mid Tower
|
|
Motherboard Support
|
|
|
Compatible Motherboard Formats
|
ATX, E-ATX, ITX, Micro-ATX
|
|
Max. Motherboard Format
|
E-ATX
|
|
Internal Dimensions
|
|
|
Max. CPU Cooler Height
|
170 mm
|
|
Max. GPU Length
|
380 mm
|
|
Max. GPU Width
|
170 mm
|
|
Max. PSU Length / Depth
|
250 mm
|
|
Display
|
|
|
Display Included
|
Yes
|
|
Display Resolution
|
900 Pixel
|
|
Display Panel Type
|
LED Panel
|
|
Power Supply
|
|
|
PSU included
|
No
|
|
PSU Format
|
ATX
|
|
Power Supply Position
|
rear bottom
|
|
Cable Specifications
|
|
|
Riser Cable Included
|
No
|
|
Fan Support
|
|
|
Case Fan Support (Bottom)
|
120mm Fan (3x)
|
|
Case Fan Support (Rear)
|
120mm Fan (1x)
|
|
Case Fan Support (Top)
|
120mm Fan (3x)
|
|
Max. Number of Fans
|
7
|
|
120 mm fans
|
7
|
|
Radiator Support
|
|
|
Max. Radiator Compatibility
|
1x Triple (360 mm)
|
|
Radiator/AIO Support (Top)
|
360mm Radiator
|
|
Drive Bays
|
|
|
Max. 2.5 Inch Drives
|
5
|
|
Max. 3.5 Inch Drives
|
2
|
|
Max. 5.25 Inch Drives
|
0
|
|
Hot swap drive bays
|
No
|
|
External Ports
|
|
|
Front I/O – USB Type C Ports Total
|
1
|
|
Front I/O – USB Type A Ports Total
|
2
|
|
USB 3.2 (external) Type C
|
1
|
|
USB 3.0 (external) Type A
|
2
|
|
Audio outputs & inputs
|
1x output / input comb. (3.5 mm jack, 4-pin, TRRS)
|
|
Case Features
|
|
|
I/O position
|
Side
|
|
Side panel
|
with window
|
|
Vertical GPU Mount
|
No
|
|
Adjustable Vertical GPU Bracket
|
No
|
|
Front door
|
No
|
|
Cable Management
|
Yes
|
|
Filters Included
|
Yes
|
|
Filter Position
|
Bottom, Top
|
|
Noise dampening
|
No
|
|
Mainboard slide / tray
|
No
|
|
Transport System
|
No
|
|
Back Connect
|
|
|
Back Connect
|
Yes
|
|
Back-Connect Compatibility
|
ASUS BTF, MSI Project Zero
|
|
Expansion Slots
|
|
|
Expansion slots / PCI slots
|
8
|
|
Features
|
|
|
Housing Feedthrough
|
No
|
|
Connectivity
|
|
|
Card reader
|
No
|
|
Fan Header
|
|
|
Fan Controller / Fan Hub
|
No
|
|
Mounting
|
|
|
Case VESA Mountable
|
No
|
|
Internal Monitor Mount
|
No
|
|
Materials
|
|
|
Materials
|
Steel, Tempered Glass
|
|
Lighting
|
|
|
Lighting / RGB
|
No
|
|
Product Series
|
|
|
Product Series/Family
|
Evolv X2
|
|
Additional Contents
|
|
|
Fans Included
|
No
|
|
Included fans
|
None
|
|
Phanteks Nexlinq Controller Hub V2 - black
|
|
|
Colour
|
|
|
Primary Colour
|
Black
|
|
Dimensions
|
|
|
Length / Depth
|
79 mm
|
|
Width
|
45 mm
|
|
Height
|
15.1 mm
|
|
Connectivity
|
|
|
Connector 1 (internal)
|
Fan (4-Pin) SOCKET
|
|
Materials
|
|
|
Materials
|
ABS
|
|
Lighting
|
|
|
Lighting / RGB
|
No
|
